PHOTO |
SPECIFICATION / DESCRIPTION |
|
BIOREACTOR (DOST DESIGN)
- 1 ton capacity per batch
- Powered by 1/2Hp electric motor
- 3 ½ inches main shafting, 16 ft. in length, 56” diameter
- Complete with electrical control
- With rotating shafting
- Body made of MS Plate
- 500 kgs. capacity per batch
- Powered by 1/4Hp electric motor
|
|
|

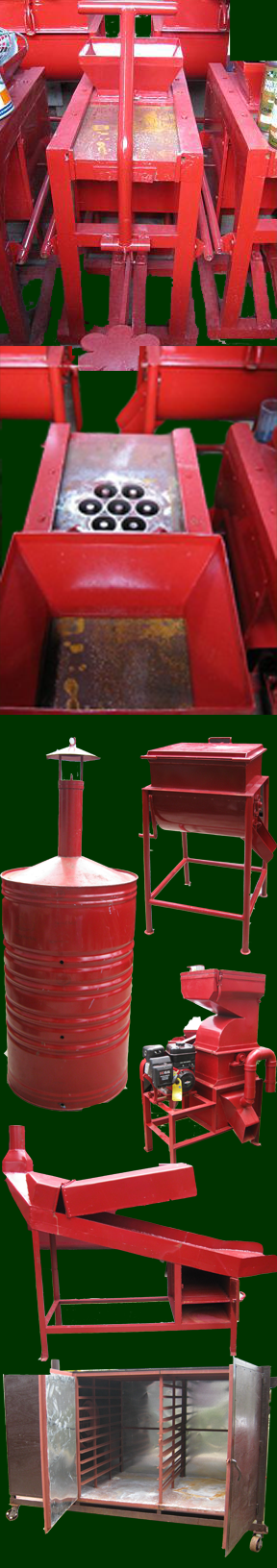

CHARCOAL MAKER
Component 1 |
Briquettor (7 Ports) |
 |
Capacity |
300 kgs / day |
Dimensions |
| Height |
28" |
| Width |
12" |
| Length |
29" |
| Materials |
- Angle Bar (Table Frame) - 1 1/4 x 2"
- Table Plate (MS) - 1/4"
- Hopper Plate (MS) - 1/2"
- Bracket - 1/2"
- Push Plate (MS) - 5/16" & 3/8"
- Pedal (MS) - 1/2 x 3"
- Pipe (BI) - 3/4 x SCH 40
- Liner (BI) - 2 x 6 SCH 80
- Piston (CRS) - 2 x 1 1/4
|

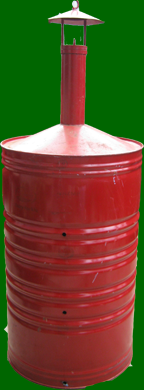

Component 2 |
Drum Carbonizer (Heavy Materials) |
 |
Dimensions |
Height |
36" |
Width |
23" |
Materials |
- GI (for Chimney) - Gauge 18"
- Flat Bar - 3/16 x 5/8
- 20 - 25 Kilos / Load
|
Component 3 |
Dryer |
 |
Capacity |
300 kgs |
Materials |
- Sliding & Tray Frame - 3/16 x 1"
- Post & Body Frame - 1/4 x 1 1/2"
- Fire Box and Chimney - Gauges 2.0mm
- Cover: GI Steel Plate #22 & Marine Plywood 1/4
- Electric Motor: 1 HP Mindong Brand, 100-200 kgs / batch & 3-4 hours drying time
|
Component 4 |
Grinder |
 |
Capacity |
100 Ton / day |
Materials |
- Angle Bars (Body Frame) - 1/4 x 1", 1/4 x 1 1/2" & 1/4 x 2"
- Metal Steel Plate (Body) - 2.0mm
- Rotor Plate (MS Plate) - 5/16 x 11"
- Rotor Blade - 1/2 x 1"
- Electric Motor: 1 HP Mindong Brand, 100-200 kgs / batch & 3-4 hours drying time
|
Component 5 |
Mixer |
|
Capacity |
5 kgs max / load |
Dimensions |
| Height |
42" |
| Width |
23" |
| Length |
18" |
| Materials |
- MS Plate - 3/16" & 2.0 mm
- Pipe (BI) - 1 x SCH 40
- Angle Bar - 1/4 x 1 1/2"
- Flat Bar - 1/4 x 1" & 3/8 x 1"
- Round Bar - 5/8"
|
Component 6 |
Plate Carbonizer (Light Materials) |
|
Dimensions |
| Height |
39" / 55" |
| Width |
85" |
| Length |
20" |
| Materials |
- MS Plate - 2.5"
- Square Bar - 5/8"
- Angle Bar - 1/4 x 1/2"
|
|
|

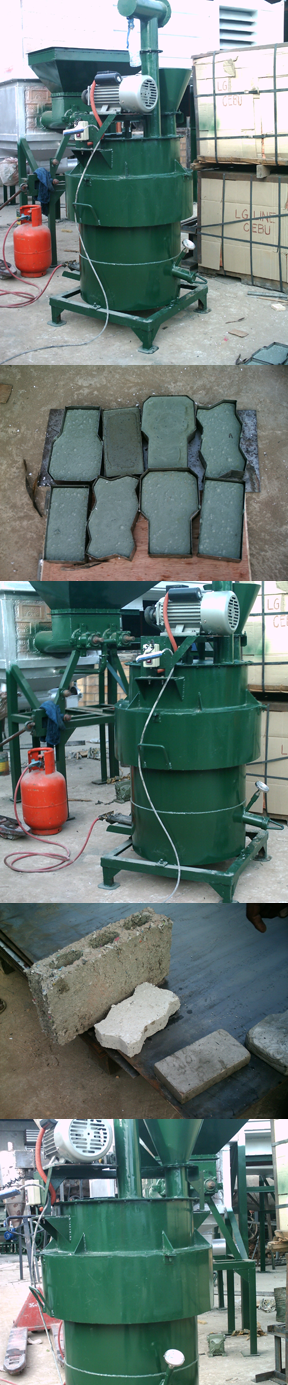

PLASTIC DENSIFIER
Capacity |
50 kg per batch |
Melting Cylinder |
|
127 liters |
|
570Mm Ø x 500mm high |
|
3.0 mm mild steel plate. Painted with 2 coats gray marine epoxy and 2 coats enamel green finish |
|
3.0 mm thick SS304 |
Hopper/ Feeder |
|
300mm x 500 inlet, 100mm Ø outlet and 350 mm high |
|
3.0mm mild steel plate (MSP), painted w/ 2 coats gray marine epoxy and 2 coats enamel green finish |
Outlet/ Spout (for melted styro/ plastics) |
|
75mm Ø x 200mm Long |
|
G.I. Pipe schedule 20 |
Chimney/ Exhaust with scrubber |
|
100mm Ø x 200mm Long |
|
G.I. Pipe schedule 20 |
Mixer/ Blunger |
|
Two (2) flat blade |
|
50mm x 600mm |
|
6.0 mm MSP |
|
40 RPM |
|
1 ¼ Ø CRS |
Drive Motor |
1 Hp, single phase, 220 volts, 1750 RPM coupled with Reduction Gear, Ratio 1:40 |
Burner |
Three (3) – Layered cast iron burner; hose, hose clamp and regulator, Vietcong Type, (LPG fired), Excluding LPG cylinder |
Metal Molders (D-Type and S-Type) |
|
Fifteen (15) pcs. (5 pcs – D – Type), (5 pcs – S – Type) and (5 pcs - Rectangle Type) |
|
4.0mm MSP, 100mm x 150mm x 50mm |
|
|

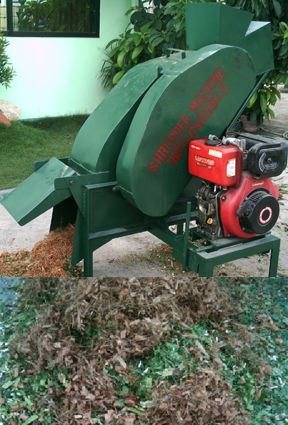

SHREDDER MACHINE (BIODEGRADABLE)
Capacity |
500 - 800 kgs per hour |
Shredding Cylinder Type |
closed, single cylinder (2.3 mm steel plots) |
Teeth - Axial Blade |
30 pcs leaf spring or any (4mm thick) |
Stand Frame |
4.5mm x 2” angle bar |
Hopper |
Inverted Frustrum |
Prime Mover |
7 Hp Water Cooled Diesel Engine Brand: Yan mar(Japan made) |
Design to chop twigs of trees |
Particles should not be more than ½ inch in length |
AMTEC (Agricultural Machinery Testing Evaluation Center) Tested |
|
|

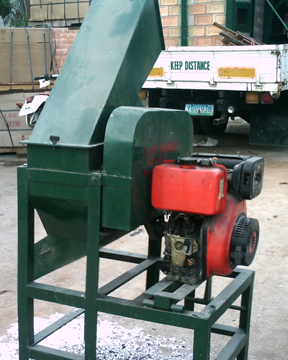

SHREDDER MACHINE (NON-BIODEGRADABLE)
Can shred/grind Sando bags, styropor / Styrofoam, PET bottles, plastic Containers foil packs, etc... |
Chamber size |
280 x 500 x 320mm |
Rotor diameter |
200mm |
Motor drive |
10Hp electric motor, 3 phase |
Horizontal Blades |
High Impact Steel / 24 pcs |
Grinding Capacity/Output |
100 – 150 kg/hr |
AMTEC (Agricultural Machinery Testing Evaluation Center) Tested |
|
|

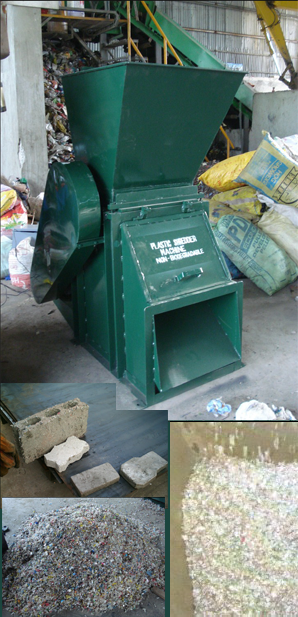

NEW SUKI HEAVY DUTY SHREDDER MACHINE (NON-BIODEGRADABLE)
Can shred/grind Sando bags, styropor / Styrofoam, PET bottles, plastic Containers foil packs, etc... |
Chamber size |
780 x 780 x 700mm |
Rotor diameter |
225mm |
Motor drive |
12Hp Water Cooled Diesel Engine or 20Hp electric motor |
Horizontal Blades |
High Impact Steel / 12 pcs |
Grinding Capacity/Output |
80 – 100 kgs/hr |
AMTEC (Agricultural Machinery Testing Evaluation Center) Tested |
|
 |

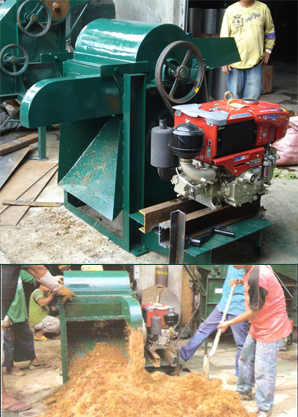

SUKI SB1000: HEAVY DUTY SHREDDER MACHINE (BIODEGRADABLE)
Overall Dimension |
1700 x 1320 x 1170mm |
| Feeding Inlet Dimension |
300 X 140mm |
Outlet Opening Dimension |
175 X 90mm |
Cylinder Type |
Closed Cylinder (610mm X 375mm) |
Shredding Blades Size |
76 X 64 X 16mm |
| Prime Mover |
10 kW Electric Motor or 12 HP Water Cooled Diesel Engine |
Grinding Capacity/Output |
1000– 1500 kgs/hr |
AMTEC (Agricultural Machinery Testing Evaluation Center) Tested |
|
|

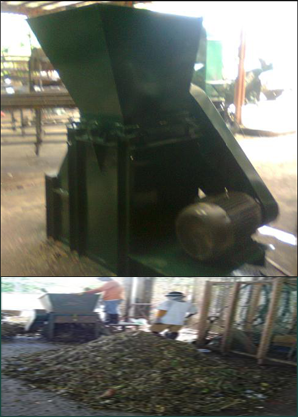

SUKI SB4000: HEAVY DUTY SHREDDER MACHINE (BIODEGRADABLE)
Overall Dimension |
1170 x 850 x 1500mm |
Hopper Dimension |
560 x 215mm |
Cylinder Type |
Closed Cylinder (550mm x 416mm) |
Shredding Blades Size |
98 x 62 x 16mm |
| Prime Mover |
15 kw electric motor or 24 water cooled diesel engine |
Grinding Capacity/Output |
4000 – 5000 kgs/hr |
AMTEC (Agricultural Machinery Testing Evaluation Center) Tested |
|
|

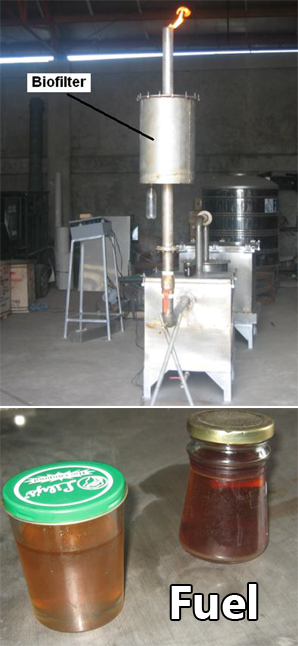

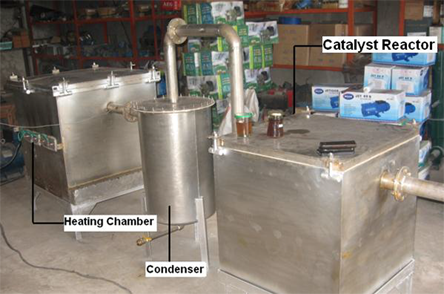

PLASTIC TO FUEL
Available in 20-30 kgs. or 100 kgs. per batch shredded plastic |
1 unit – Shredder machine, 50 kgs. per hour Capacity per batch |
Recovery of Fuel @ 15 to 20 % |
Easy to Operate |
6 - 10 Kw Heater |
Price includes Delivery, Installation and Training |
 |

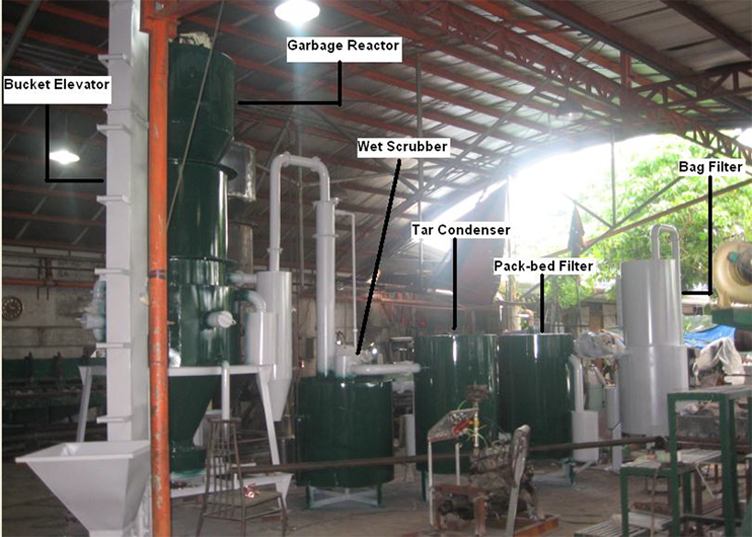

| SUKI WASTE TO ENERGY
Model |
40D |
60D |
90D |
100D |
120D |
180D |
Power Output (kWe) |
19 |
20 |
50 |
75 |
100 |
200 |
Rice Husk Consumption (Kg./Hr.) |
19 |
42 |
75 |
118 |
169 |
230 |
Engine / Generator |
Surplus spark ignition engine with AC-Synchronous Generator or Imported Gas Engine Generator Set |
| Floor Area (mxmxm) |
5x5x4 |
5.5x5.5x4.5 |
6x6x5 |
6.5x6.5x5.5 |
6.5x7x6 |
7x8x7 |
|
